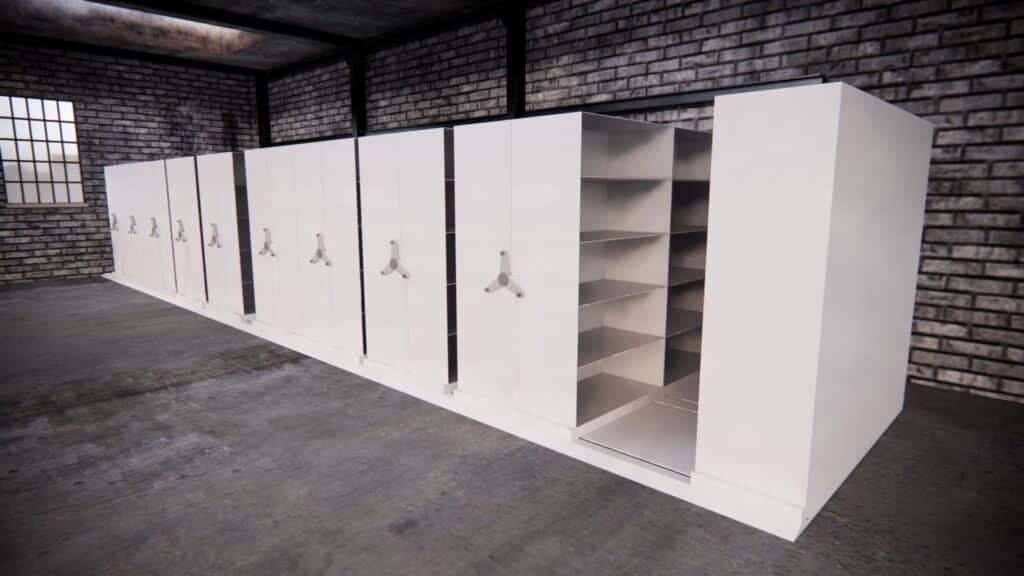

Roller Racking / Mobile Shelving
Roller racking provides several benefits, including:
- 1.Increased storage capacity: Roller racking allows for more efficient use of space, as items can be stored on shelves that roll out, making it easier to access items stored at the back.
- 2.Improved accessibility: The rolling mechanism makes it easier to access items stored at the back of the shelves without having to move other items out of the way.
- 3.Enhanced safety: Roller racking reduces the risk of injury from manual handling, as items can be retrieved from the shelves without the need for manual lifting.
- 4.Reduced damage to stored items: Roller racking minimizes the risk of damage to stored items, as items are less likely to be knocked or bumped when accessing items from the shelves.
- 5.Easy to install: Roller racking systems can be easily installed in existing storage facilities, making it a cost-effective storage solution.

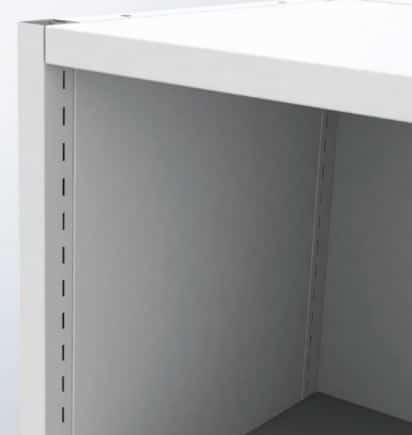

- 6.Versatile: Roller racking can be used in a variety of applications, including in warehouses, retail stores, archives, and museums.
Track and Floor
The basis of the system is a totally free-standing base. This base is made up of a track and a floor assembly. The track is a composite steel assembly. The composite track consists of an outer formed section with an inner steel ‘C’ section used as the load bearing member. This combination provides the necessary loading capacity with minimum deflection.
The track assembly is light and easy to install and transport. The track is fitted along its length with levelling shims to provide a means of accurately levelling the tracks on an uneven floor. The integral floor system creates a safe and strong false floor for personnel to walk on. The floor is produced from 18mm flooring grade particle board. The floor is located and simply secured between the tracks on an up stand on the edge of the track and an integral groove on the underside of the boards. The boards are then slid and connected by tongue and grooves to give a strong and flush fitting surface. Board support angles can be reduced to accept free issue carpet tiles.
Drive Options
The movement of the system is created with the base carriages that comprise of initial and extension bays.
Steel C section track supports the infill floor to provide a level and trip free system. The mobile shelving system also features anti-tilt devices and safety lock handles to ensure safe operation at all times – complying with all health and safety legislation.

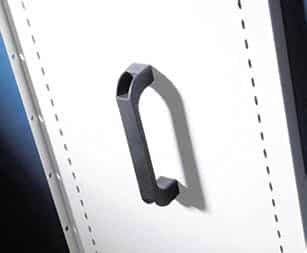

Hand Pull
Up to two bays deep and a total load of no more than 3 tonnes.

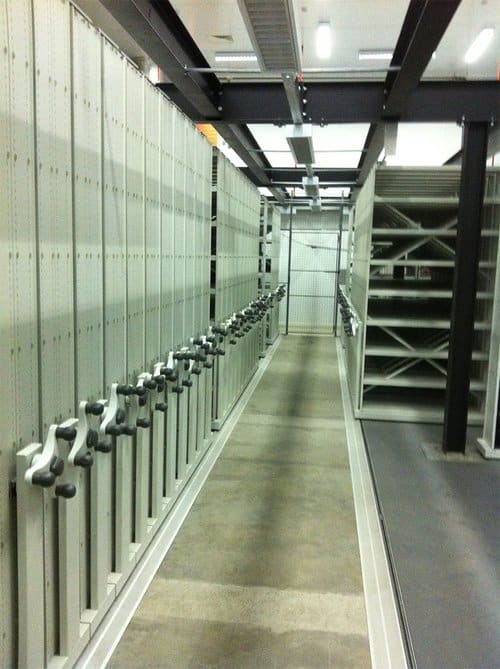

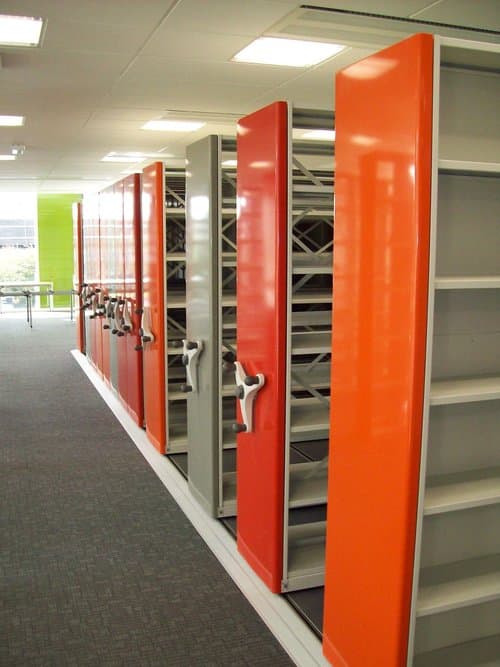

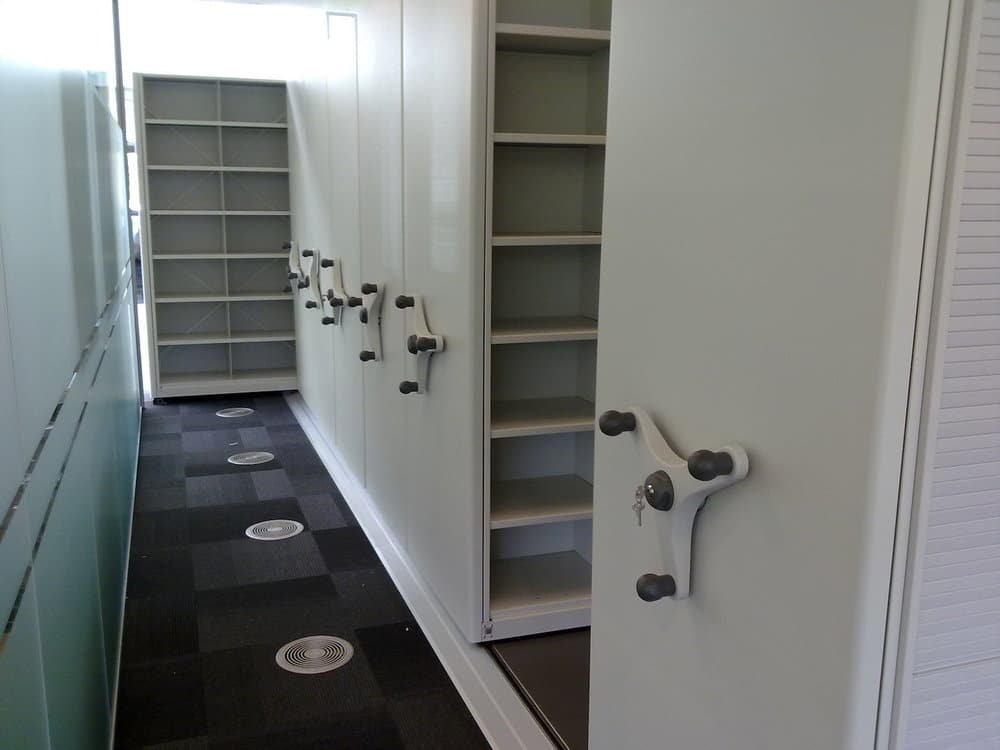

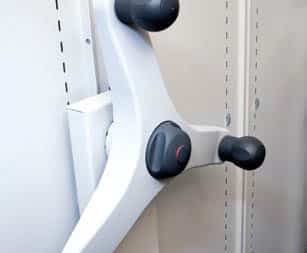

Mechanically Assisted Handles
A drive shaft is connected by a chain and sprocket to a manually operated hand wheel.

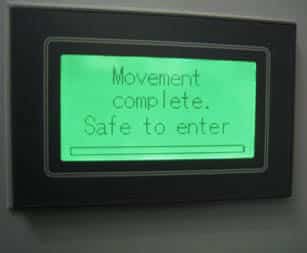

Electric Motor Drive
With a 24vDC motor which can be operated by pressing a key or linked to a computer pc system.Chassis Mobile Shelving System

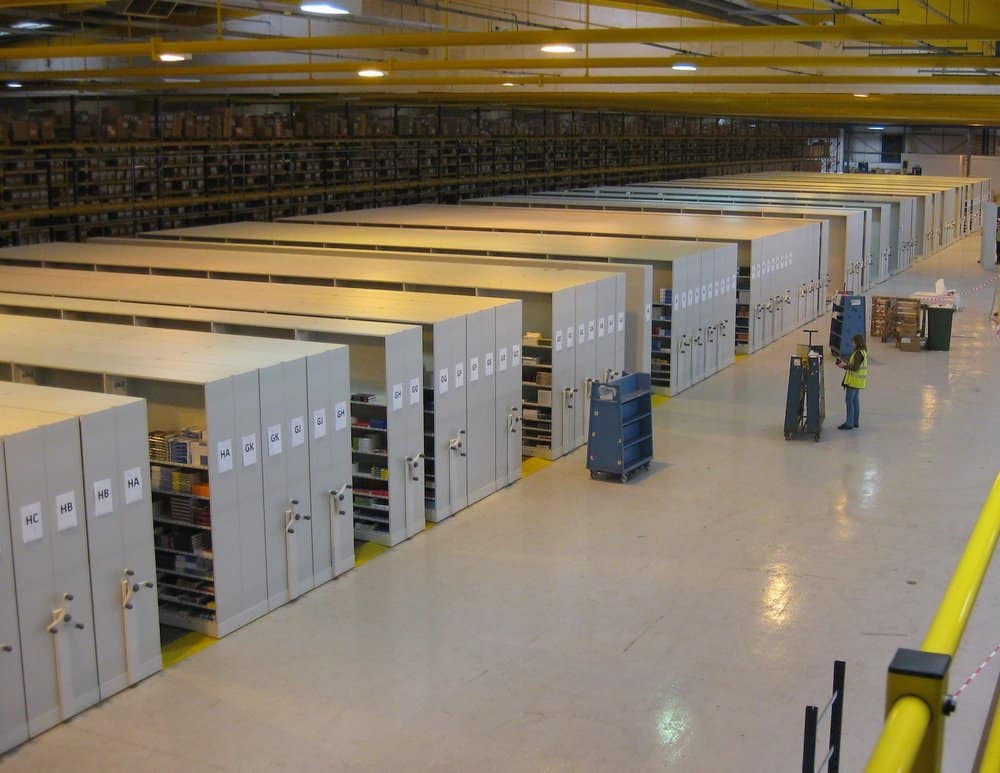

The chassis mobile shelving system is a heavy duty mobile storage solution with an active load transfer system which enables each bay to easily accommodate up to 500kg.
Ideal for mixed shelving applications, the chassis mobile storage system is particularly suited to pallet racking, widespan and cantilever racking.
Flexibility as standard - The chassis mobile storage system is ideal for applications where a bespoke solution is required. The wide choice of colours and the unlimited range of interior storage options coupled with a high load bearing capacity, makes the chassis mobile storage system incredibly flexible and hard wearing.

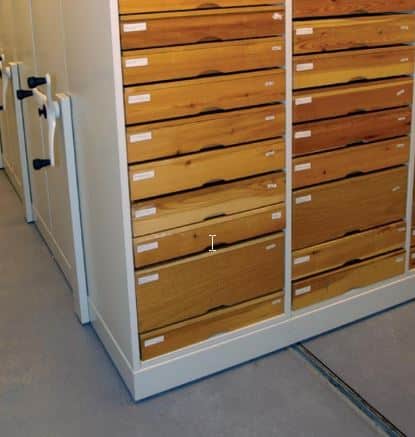

Recessed track system
The tracks on the chassis mobile storage system can be sunk into screed floors for a level surface.

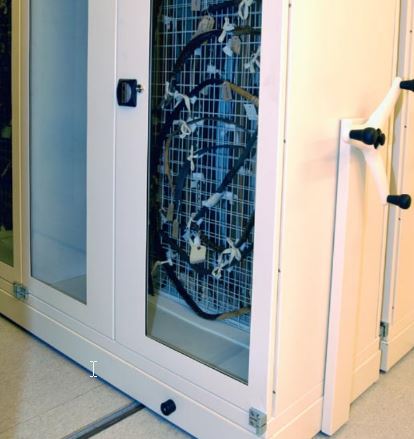

The perfect solution
The option of bespoke cabinets ensure that whatever your requirement, we will be able to provide the perfect solution.
